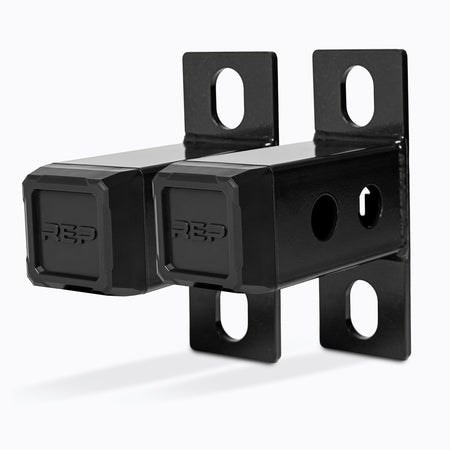

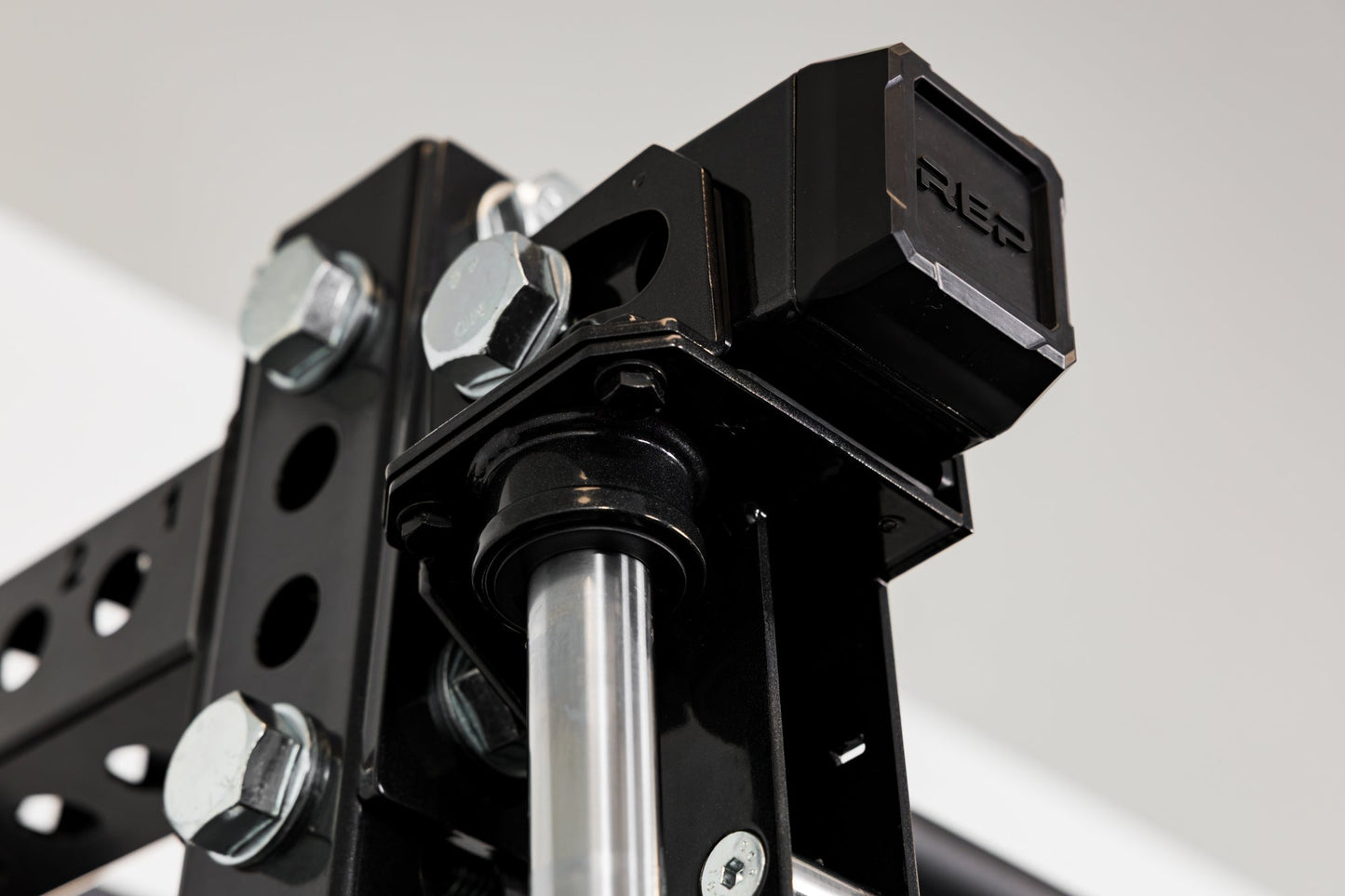

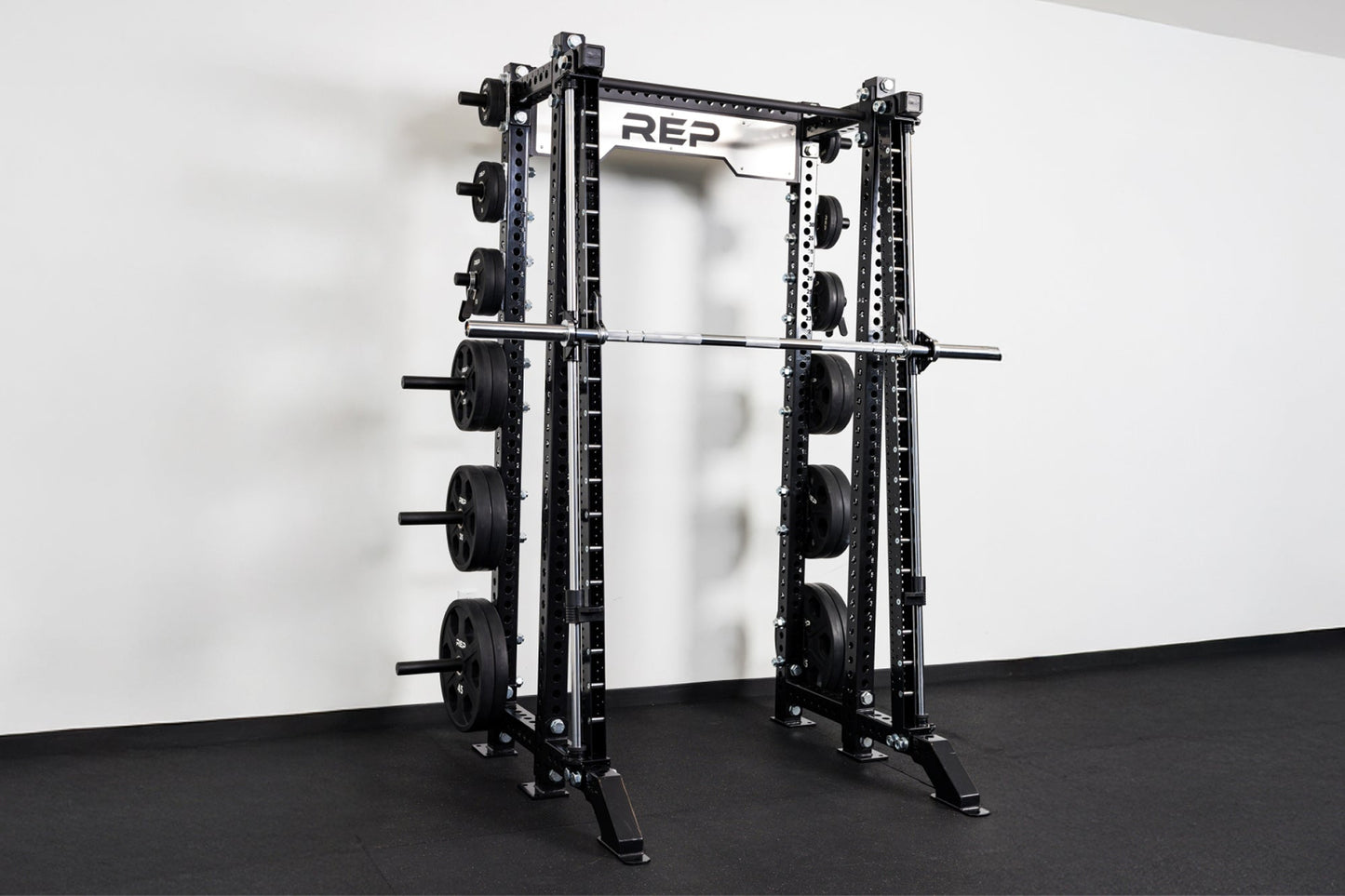

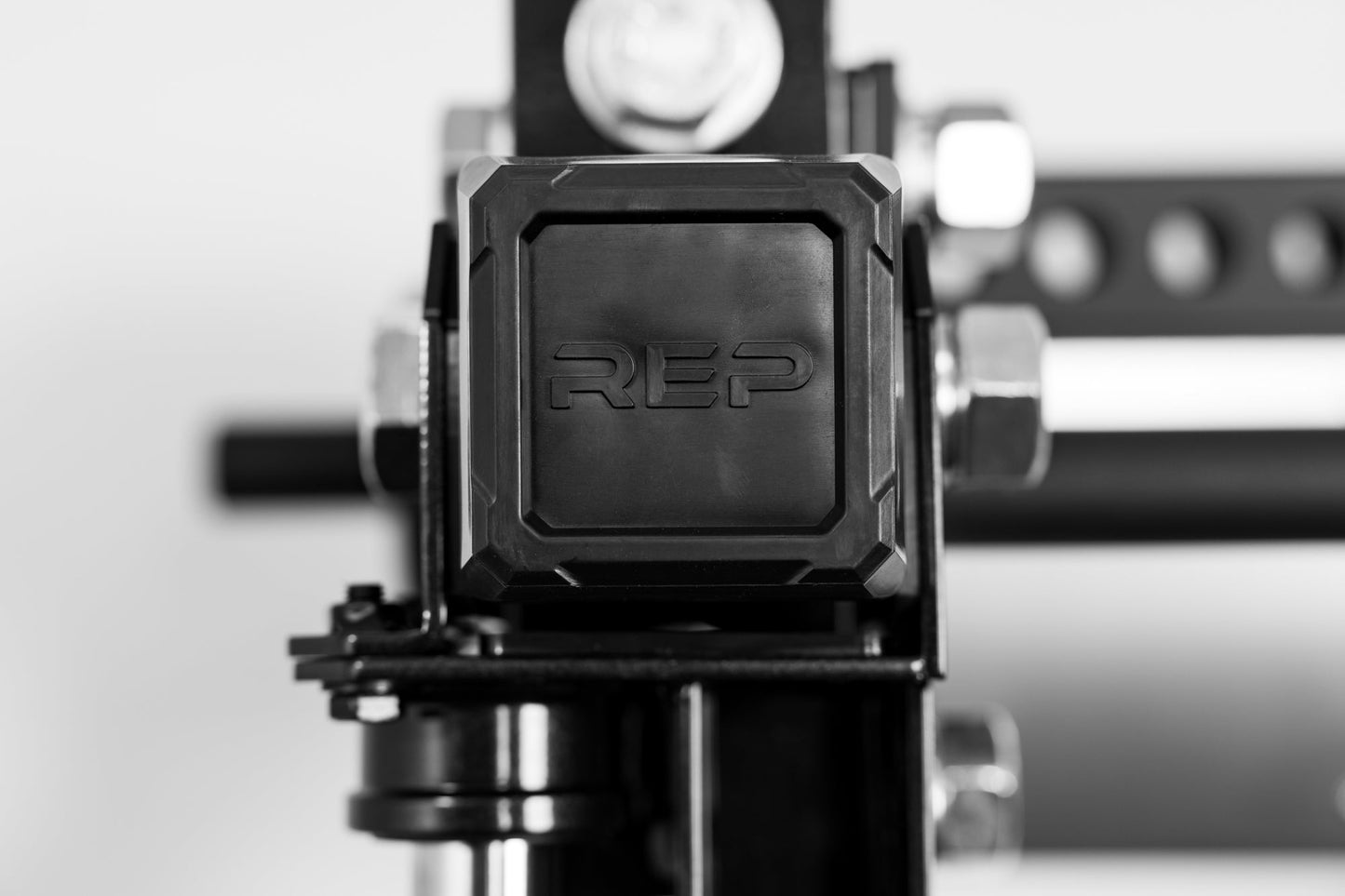

Smith Machine Front Extension Bracket

The Smith machine attachment is compatible with REP PR-4000 and PR-5000 series racks in both 80” and 93” height options.

It is not compatible with the Omni™ Rack or the Apollo™ Half Rack.

Yes. For this configuration, you will need the Smith Machine Front Extension Bracket as well Front Foot Extensions (FFEs). For FFEs, both the 2.0 and 1.0 variants will work. The Mini FFEs will also work, but the Smith Machine can only be angled to about 4 degrees. Note that this will not work with racks that have an Ares 2.0, Ares 1.0, or Athena as the trolleys would hit the Smith machine.

For installation off the front of the rack, you will need to purchase the Smith Machine Front Extension Bracket, as well as a lower front foot extension. The Smith is compatible with the front foot extension 2.0, front foot extension 1.0, as well as the mini front foot extensions. Based on which front foot extension option is used, you will need to install the upper bracket in the right orientation. Refer to the assembly guide for your FFE version to ensure the extensions face the proper direction for a front-mounted Smith machine. Also, note that if you chose to use mini front foot extensions, your adjustable angle will be limited to only 4 degrees.

Yes. As long as there is no Ares 2.0, Ares 1.0, or Athena, the Smith machine can be installed on a 4-post rack.

Please note that crossmember length will affect ability to use safeties, compatibility with other attachments, as well as whether you install the Smith machine inside or outside of the rack. Use of non-REP Smith attachment safeties can be unsafe and will void your warranty. Stay tuned: We're working on an integrated Smith Machine Attachment safety.

Yes, the Smith machine installs easily on 6-post set-ups. However, those with a rack depth of 30" or less will not be able to use safeties or spotter arms inside the rack.

Use of non-REP Smith attachment safeties can be unsafe and will void your warranty. Stay tuned: We're working on an integrated Smith Machine Attachment safety.

This depends on your setup.

16" 4-post rack without a cable attachment: You can attach and angle the Smith machine.
16" 4-post rack with a cable attachment: The Smith machine will not be compatible.
16" + 16" 6-post rack with a cable attachment: You can attach and angle the Smith machine.

4000 series racks with a cable attachment: You will not be able to angle the Smith machine due to interference with the cable system trolley handles on the front uprights.
All other setups will allow for the 5 degree angle.

The Smith machine will integrate into existing 6-post set-ups of the Ares 2.0, Athena, Ares 1.0. It is not compatible with existing 4-post set-ups with an Ares 2.0, Ares 1.0, or Athena. REP is working on future solutions that will allow compatibility with 4-post racks. It is not compatible with either of these wall-mounted cable systems. REP is currently working on some options for future compatibility.

Compatibility varies by configuration. Depending where the Smith machine is placed, and your rack size, pull-up bar compatibility may be affected.

Yes, as long as the Smith bar placement allows sufficient clearance from stored plates. Weight storage compatibility depends on the rack depth and crossmember length.

Yes. During installation, you can choose from choose from a range of angles from –5 to +5 degrees, allowing you to tailor the bar path to your preferred lifting style and comfort. For some exercises, the angled bar path can help mimic natural joint motion, improving comfort and muscle activation while reducing strain on joints.

When installed on the inside of a 6-post rack, depending on your crossmember depth, you will be limited on the use of spotter arms or flip-down / strap-safeties inside of the rack. For a 30" rack (4-post or 6-post), with the Smith mounted inside the rack, the best option would be to use Spotter Arms off the front upright. For a 41" rack (4-post or 6-post), as long as the Smith machine is placed close to an upright,  spotter arms will work both inside or outside the rack. In either case, when mounted inside the rack, flip-downs and strap safeties will not be compatible. Use of non-REP Smith attachment safeties can be unsafe and will void your warranty. The good news is that REP is currently developing a new safety option that would allow customers to place their Smith machine inside the rack and still use an external safety for free barbell work.

A Smith machine is good for beginners all the way to advanced athletes. Since the Smith machine has a fixed bar path and integrated safeties it’s a safer training tool than a free barbell, making it great for beginners or those trading alone. For advanced individuals, the Smith machine allows for increased hypertrophy as it can enable high muscle recruitment, activation and isolation, by removing the stability aspect from the exercise and really allowing the user to focus on the movement and target muscle. It also allows for a safer way to train to failure.

The Smith machine Attachment installs directly onto your rack using provided hardware. No rack disassembly is required, but it may help to loosen the upper and lower crossmembers to make installation easier.

REP is actively developing a full ecosystem of attachments that integrate directly with the Smith machine, expanding its versatility and functionality. Separately, the BYOB variant is also in development. Unlike an add-on, this version will feature a completely different setup—designed from the ground up to let you use your own barbell, specialty bars, or operate both sides independently with ISO handles. More details coming soon!

To gain more room for pull-ups, can I move my standard 1.25" pull-up bar to mount in-between the crossmembers instead of the front upright?

We always recommend wall-mounting or floor-bolting your rack for safety purposes and to get the best performance.
